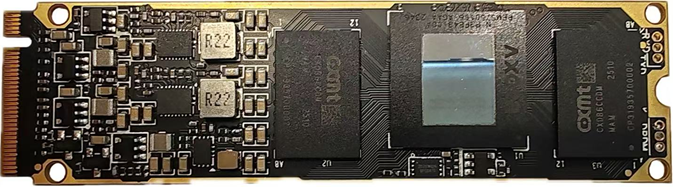

YY-AX650N-M.2
AI Computing Card

AX650N-M.2 is a low-power, mixed-precision high-performance AI computing card developed by YIYUE Tech, powered by Axera’s third-generation high-efficiency AI vision chip AX650N.

CPU:Octa-core Cortex-A55 1.7GHz.
NPU: Up to 72 TOPS @ INT4 or 18 TOPS @ INT8;
CODEC: H.264/H.265 codec;
RAM: 16GB LPDDR4 (Configurable based on user requirements);
Interface: M.2 interface

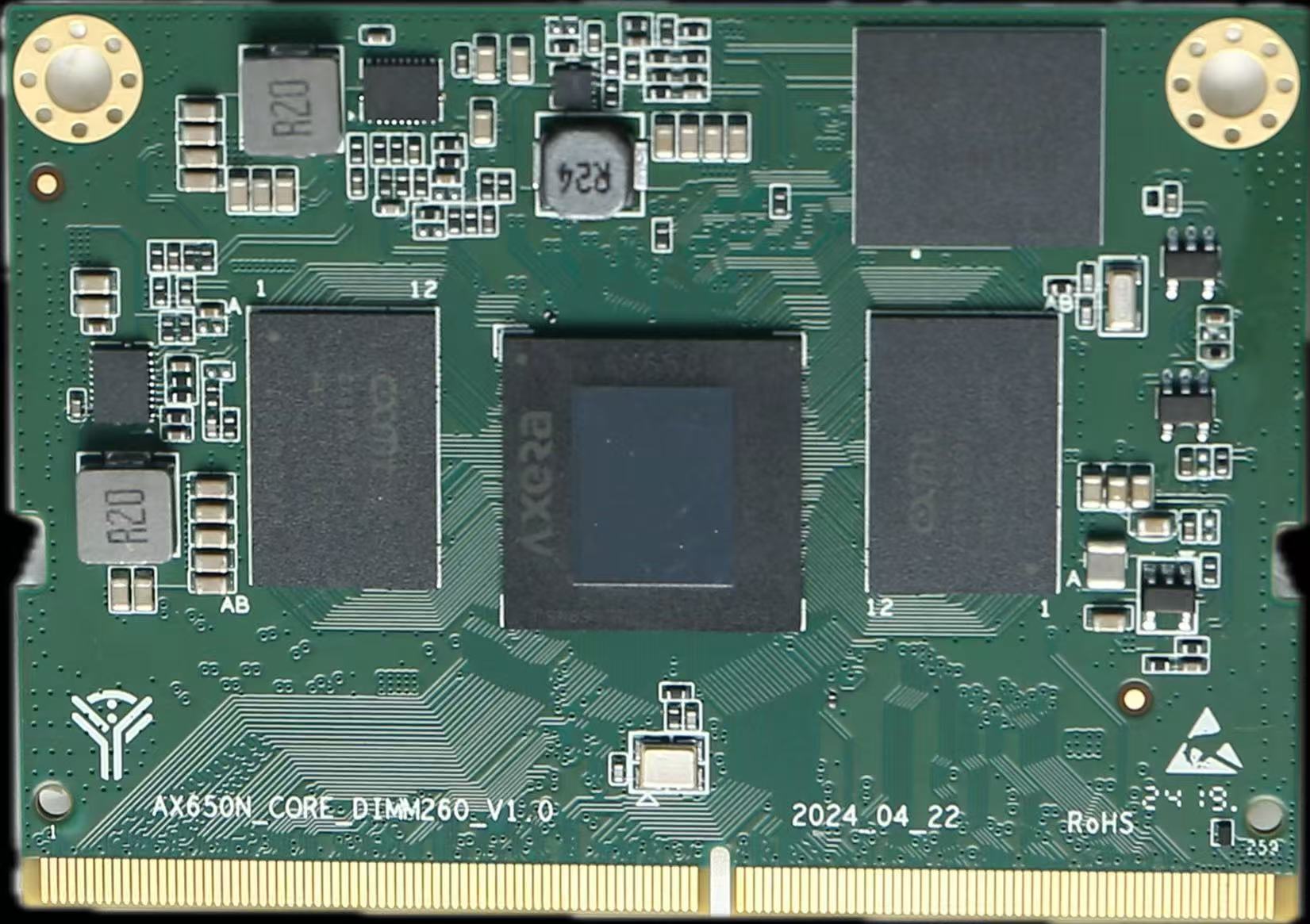

AX650N Core Board

AX 650N Core Board is a smart development board with strong AI capabilities. It is provided in a low power chip design with a high-performance AI-ISP and a power-efficient NPU, AX650 enables various AI innovations and brings an extraordinary AI enabled video and image processing experience to worldwide customers.

CPU: Octa-core Cortex-A55 1.7GHz;
NPU: up to 72 TOPS @ INT4 or 18 TOPS @ INT8;
CODEC: H.264/H.265 codec; LPDDR4+eMMC: 8+8GB,8+32GB,16+64GB;
ISP:Supports AI ISP (low-light level night vision).

AX650N Base Board

AX650N base board offers a rich set of interfaces, making it suitable for a wide range of application scenarios. Its form factor, dimensions, and interfaces can be customized and developed according to user requirements.

CPU: Octa-core Cortex-A55 1.7GHz; NPU: up to 72 TOPS @ INT4 or 18 TOPS @ INT8; CODEC: H.264/H.265 codec; LPDDR4+eMMC: 8+8GB,8+32GB,16+64GB; ISP:Supports AI ISP (low-light level night vision).

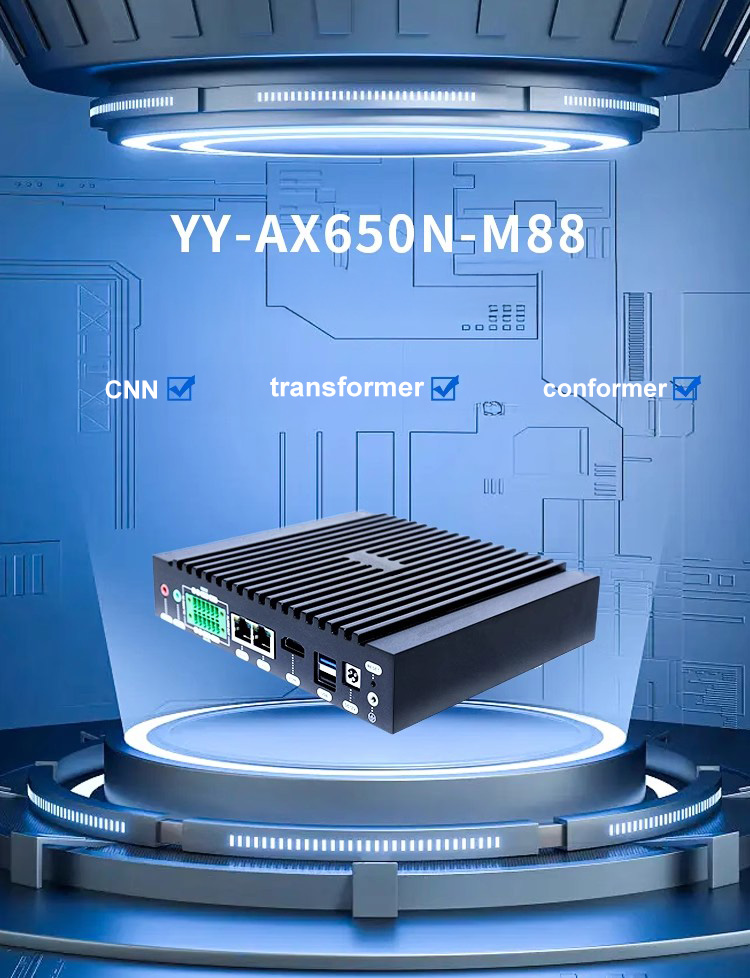

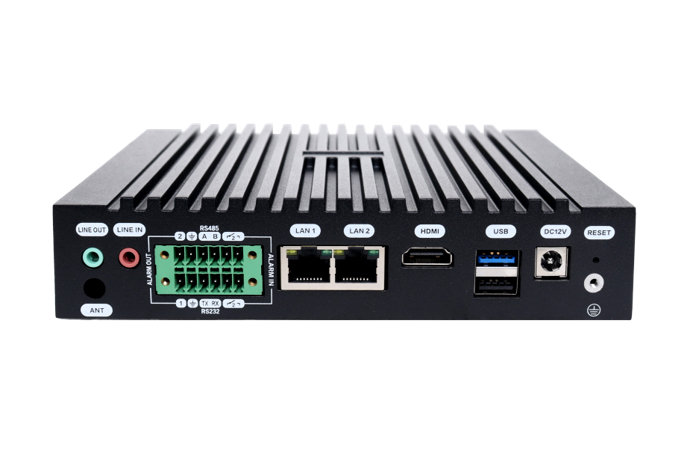

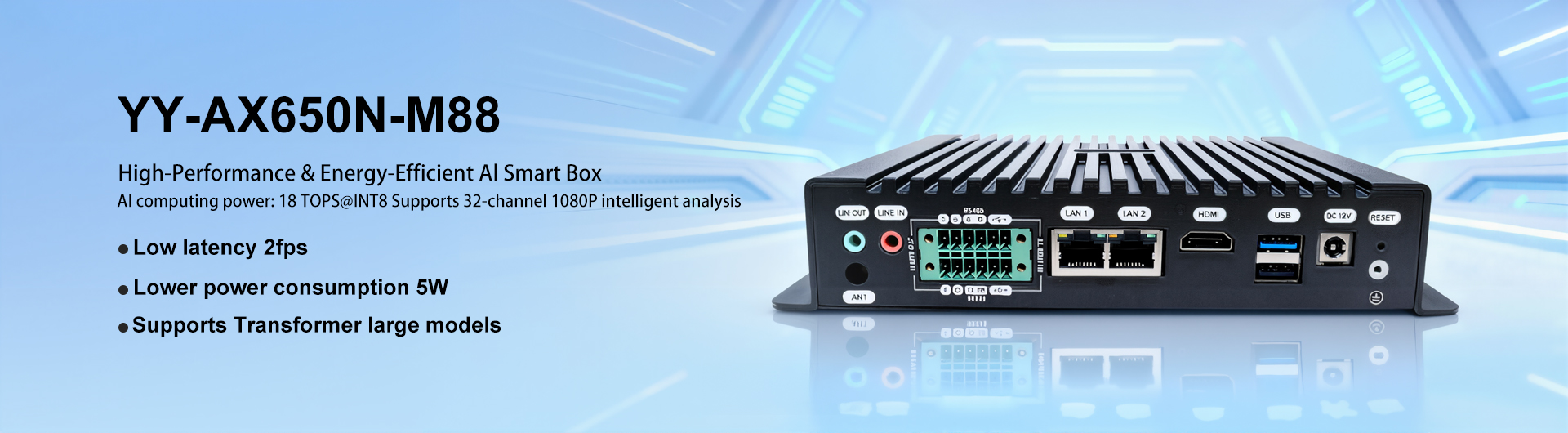

AX650N-Intelligent Edge AI Box

AX650N-Intelligent Edge AI Box is a low-power, high-computing intelligent edge AI box developed by YIYUE Tech, featuring Axera’s third-generation high-efficiency AI vision chip, supporting CNN networks, it natively supports various large-scale model architectures such as Transformer and Conformer.

CPU: Octa-core Cortex-A55 1.7GHz;
NPU: up to 72 TOPS @ INT4 or 18 TOPS @ INT8;
CODEC: H.264/H.265 codec; RAM: 8GB LPDDR4 (Customizable based on user requirements);
ROM: 8GB eMMC (customizable based on user requirements);
Support various of transformer and conformer.

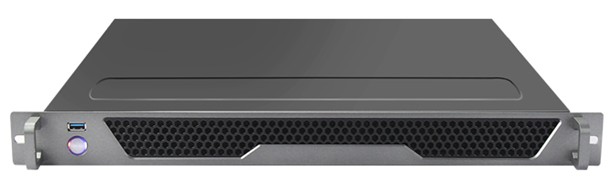

AX650N-ZY9K1U

AX650N-ZY9K1U is a 1U edge server that clusters 9 AI core boards. Each AI core board is equipped with Axera's third-generation high energy-efficiency Intelligent Vision Chip AX650N. It natively supports multiple large model network architectures including transformers and conformers. This product integrates 9 core boards, supports simultaneous access to 288 video channels with cluster management capabilities, addressing AI management requirements for multi-channel video in large-scale venues.

CPU: Atom N100
Memory: DDR4 16GB (max support 32GB)
SSD: 1TB
Mainboard Form Factor: Mini-ITX
AI Core Boards: 9pcs AX650N core boards
AI Base Board: Supports 9 DIMM-interface core boards
Power Supply: 200W server power supply (actual power consumption <100W)
Operating System: Linux (Supports Ubuntu/Debian desktop OS)

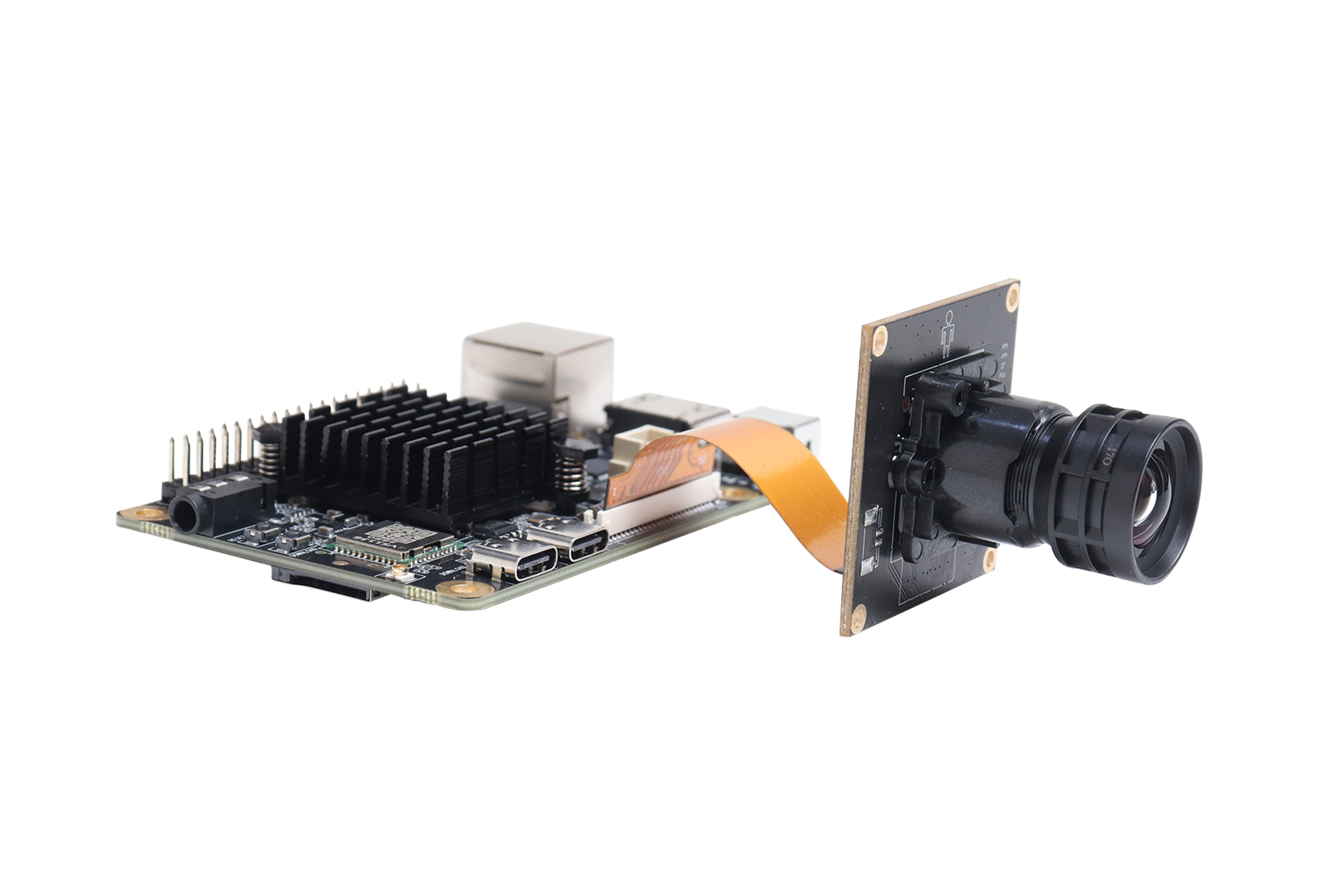

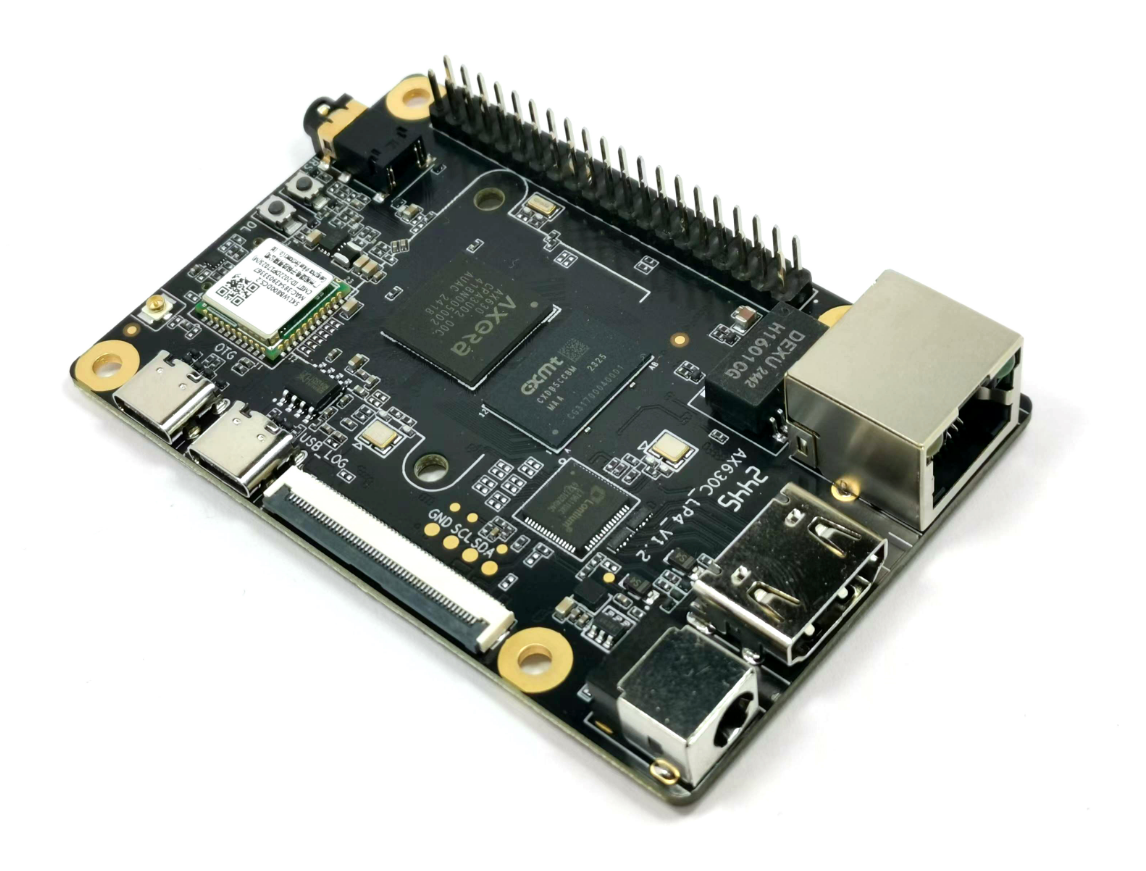

AX630C

TAX630C-AXPI is a high-performance, energy-efficient AI SOC development board for the industrial market. Integrated with the cutting edge AXProton 4.0 AI-ISP. The chip supports 4K@30fps real-time video under black light. Equipped with AXNeutron 4.0 high performance optimized NPU engine, AX630C takes a leading role in the high-quality image processing and analysis, and also provides reliable and easy-to-use SDK, empowring users to mass produce effectively.

SOC: AX630C
CPU: Arm Cortex-A53 @1.2GHz *2
NPU: 12.8 TOPS @ INT4, 3.2 TOPS @ INT8
AI ISP: Supports up to 8MP@30fps;AI-ISP & T-ISP with 3A, AI-3DNR, AIRLTM, dual-frame HDR, image enhancement, defogging, and fisheye correction
CODEC: Video Encoding: H.264/H.265, 4K@30fps + 1080P@30fps + 720P@30fpsVideo Decoding: H.264, 1080P@60fpsImage Codec: JPEG, encoding 4K@40fps, decoding 1080P@60fps
RAM: 4GB LPDDR4
ROM: 32GB eMMC (configurable with 8GB or 32GB)

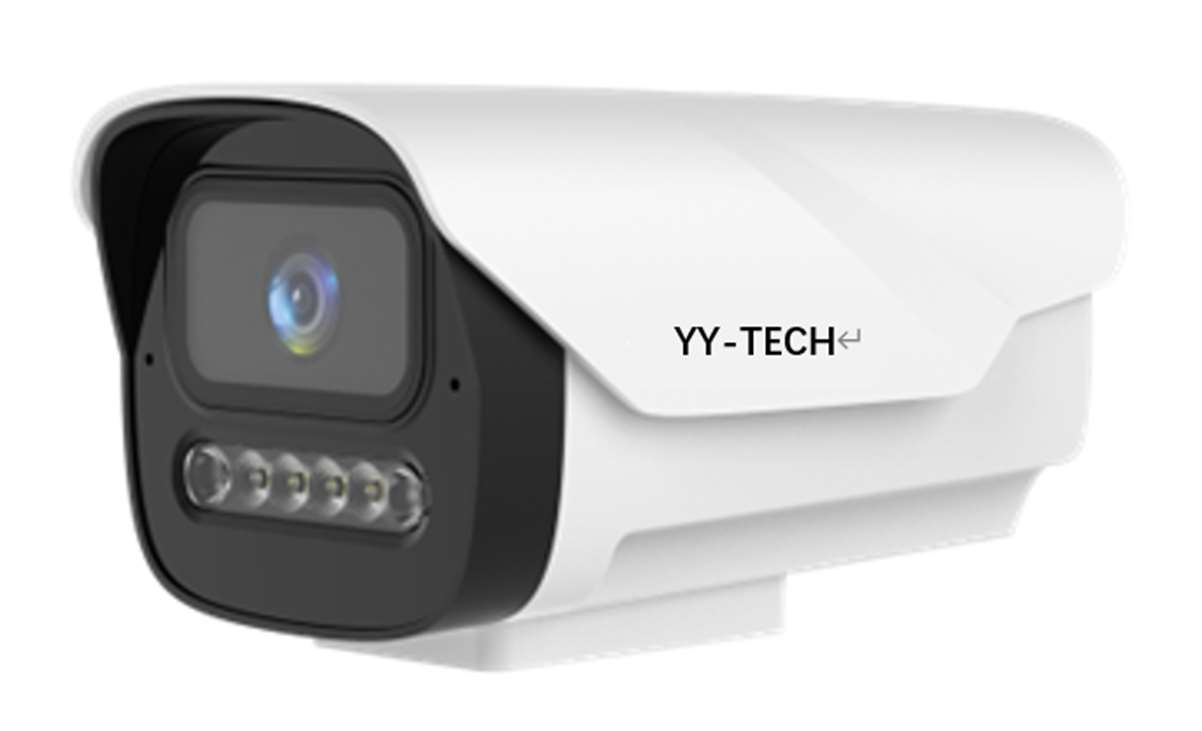

AX620Q

5 Megapixel Smart IP CameraOver 5 megapixels, maximum resolution 3072×1728, standard 16:9 aspect ratio;Built-in 2.4T computing power, supporting multiple intelligent algorithms;1/1.8" large sensor, ultra starlight-level night vision experience;F1.3 ultra-large aperture varifocal lens, significantly increasing light intake;6 warm light LEDs for supplemental illumination, supporting adaptive brightness adjustment and intelligent full-color mode;Built-in dual MIC, supporting dual MIC audio pickup with noise reduction for longer and clearer pickup distance;Built-in high-quality speaker, supporting two-way audio intercom;Metal body with built-in aluminum alloy heat dissipation bracket for enhanced stability;IP67 waterproof and dustproof rating, suitable for various outdoor environments;Supports Onvif protocol, GB28181 protocol, Rongshiyun, and public cloud protocol integration.

SOC: AX620Q
ISP: 5Mp@30fps AI ISP
DDR: 256M
NPU: 2.4TOPs@INT8

SC450AI Sensor Module

SC450AI is an advanced digital CMOS image sensor designed for surveillance camera applications, supporting transmission rates up to 2688H x 1520V @ 60fps. It outputs RAW format images with an effective pixel array of 2704H x 1536V, and supports sophisticated on-chip operations—including windowing, horizontal/vertical mirroring, and more. The SC450AI can be configured via a standard I2C interface. External exposure control is achievable through the EFSYNC/FSYNC pins

Applications:
Security Surveillance Systems
IP Cameras
Dashcams
Mobile Device Cameras
PDAs
Video Conferencing Equipment
Industrial and Environmental Systems
